Overview

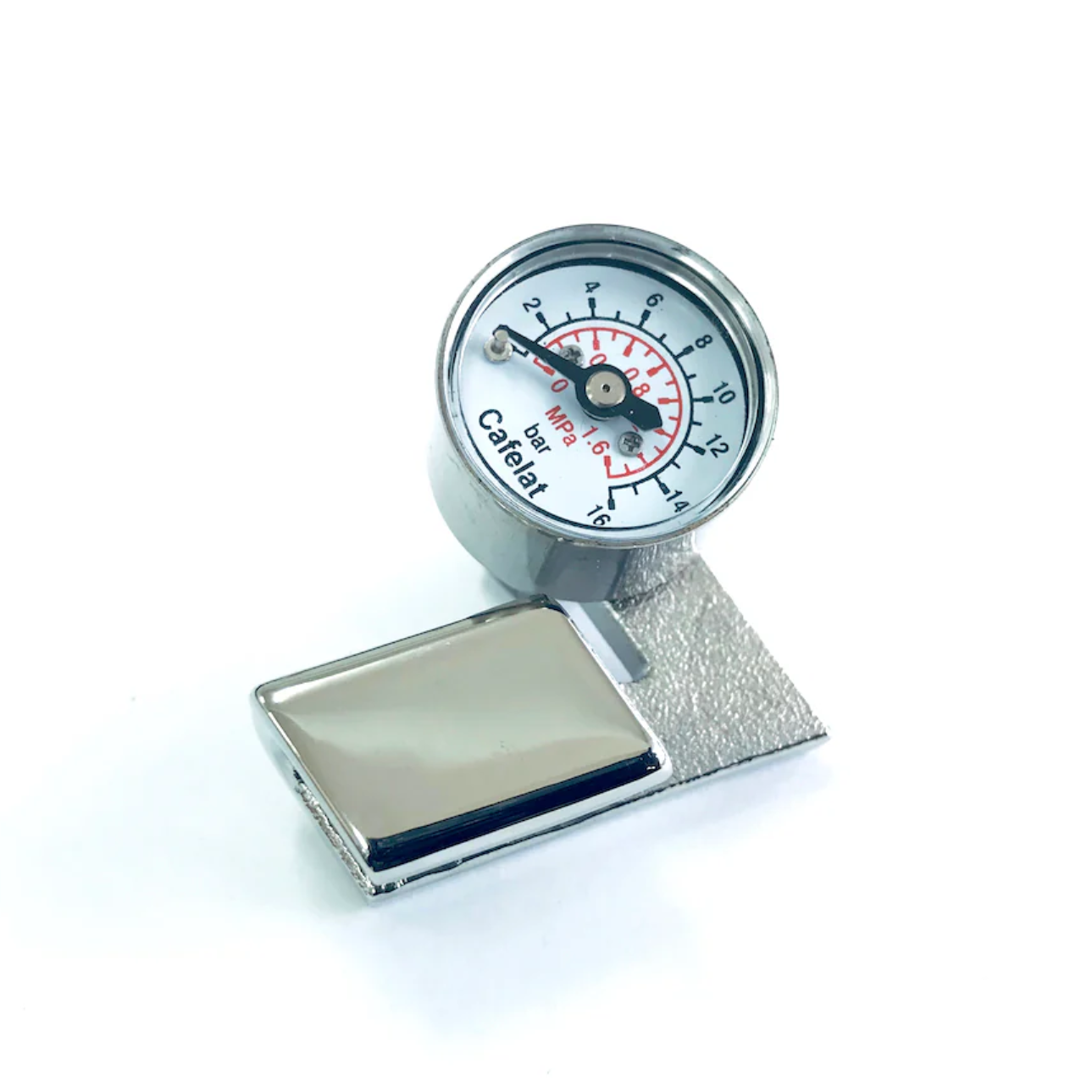

This is the replacement pressure gauge assembly for the Cafelat Robot Barista. It arrives as a single ready-to-fit unit: the gauge is permanently bonded into a stainless steel bracket, and the female push-fit Parker Legris fitting is threadlocked into the back. Two grub screws (metric) are included for mounting the bracket to the Robot’s frame. To fit it, connect your existing flexible tube to the rear fitting and secure the bracket with the grub screws using a 2 mm Allen key.

Important: this is a spare part, not a retrofit kit

If you own a Regular (non-Barista) Cafelat Robot and want to add a pressure gauge, this listing is not what you need. The Regular Robot doesn’t have the flexible tube, metal sleeve, or piston-side fitting required to plumb a gauge in, so you would need the full Pressure Gauge Kit instead. This product is for Barista owners replacing a damaged or faulty gauge on a machine that already has the rest of the system installed.

Care notes

The gauge is bonded into the bracket and the fitting is threadlocked, so neither can be unscrewed or separated. Trying to force them apart will break the part. If only the flexible tube is damaged, replace just the tube rather than buying a whole new gauge assembly.

Specifications

What’s in the box

• 1 × Pressure gauge bonded into bracket
• 1 × Female Parker Legris fitting (pre-installed and threadlocked)
• 2 × Grub screws
