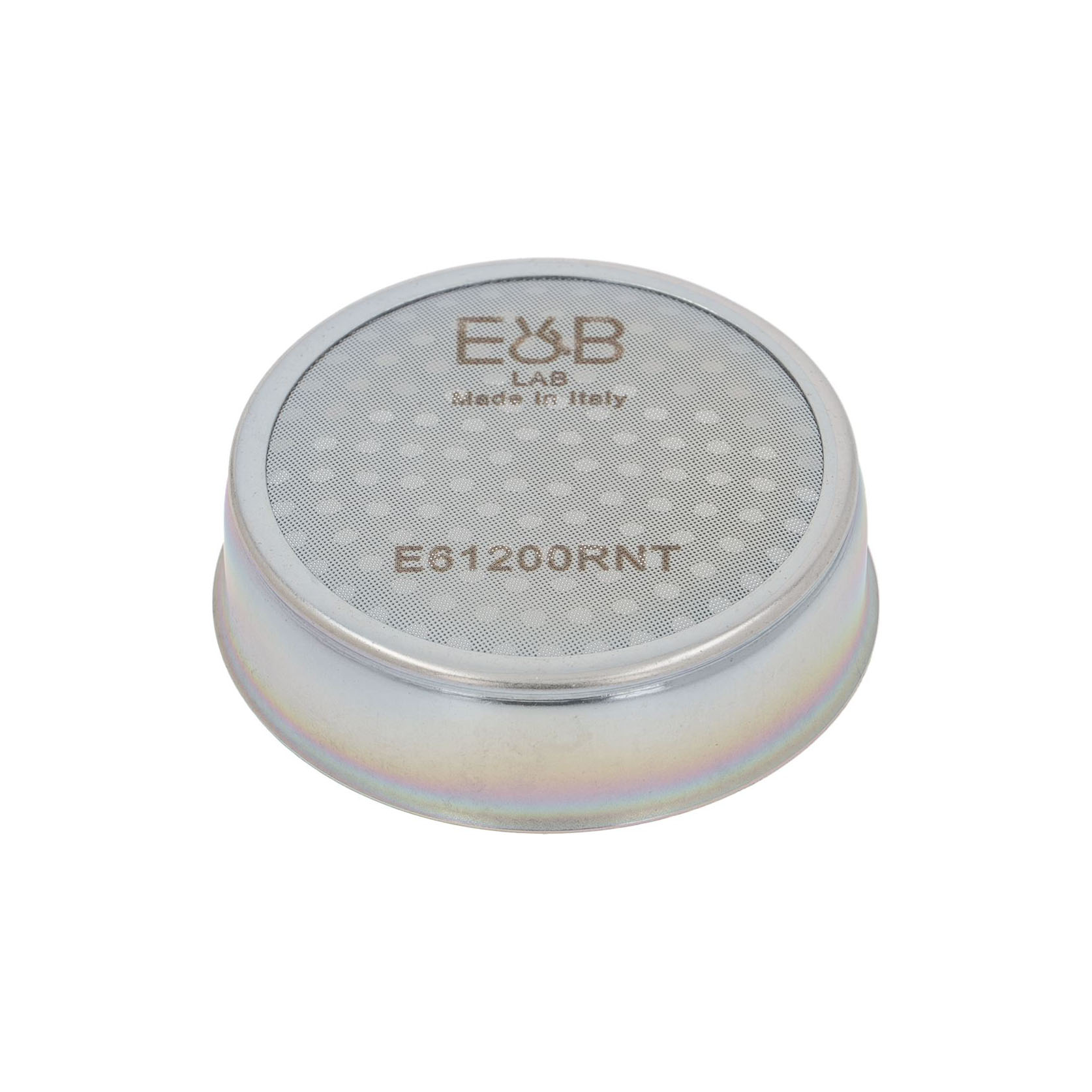

The IMS E61200RNT is a reinforced shower screen designed for E61 group heads in espresso machines. It features a photo-etched stainless steel membrane with a NanoQuartz coating, which provides hydrorepellency, reduces adhesion of coffee residues, and enhances resistance to corrosion and chemical reactions. The reinforced construction includes a 0.8 mm thick hardened steel supporting disk, ensuring durability under high-pressure conditions. This screen promotes uniform water distribution over the coffee puck, contributing to consistent extraction by creating a slight pressure drop before the water contacts the grounds.

Technical Specifications

• Material: AISI 304 stainless steel, certified food-safe
• Coating: Non-stick NanoQuartz (hydrorepellent, corrosion-resistant, and chemically inert)
• Membrane: Photo-etched with 200 µm filtering capacity
• Holes: 127 holes, each Ø 2.4 mm, for even water dispersion
• Dimensions: Body diameter Ø 57 mm, external border Ø 60 mm, wall height 17 mm
• Design: Reinforced model with integrated membrane and supporting disk
• Compatibility: Suitable for E61 group heads in machines from brands including AZKOYEN, BEZZERA, BFC, BIANCHI, BRASILIA, CASADIO, ECM, ECM MANUFACTURE, EXPOBAR, FAEMA, FAIMAC, FIAMMA RST, FIORENZATO CS, FUTURMAT, GAGGIA SPAGNA, GRIMAC, ITALCREM, MAIRALI, ORCHESTRALE, PROMAC, RENEKA, ROYAL, SAB ITALIA, SCALA, VFA, VIBIEMME, VICTORIA ARDUINO, VISACREM, and WEGA
• EAN Code: 0806891050502

The E61200RNT shower screen incorporates an advanced photo-etching process to create a precise membrane that filters water at 200 µm, allowing for fine control over flow rate and distribution. The 127 evenly spaced holes ensure that water is dispersed uniformly across the portafilter, minimizing channeling and supporting balanced espresso extraction. The NanoQuartz coating not only makes the surface non-stick for easier cleaning but also protects against scale buildup and aggressive cleaning agents. As a reinforced variant, it includes a sturdy supporting disk that maintains structural integrity during repeated use in professional or high-volume settings. This component is manufactured in Italy by IMS, a specialist in precision espresso filtration systems, and is designed to integrate seamlessly with standard E61 group heads without requiring modifications.
